Joying 9 Inch Stereo Plug-And-Play Car Radio Android 12 GPS Navigation For 2013-2018 Toyota RAV4

Special Price €341.70 Regular Price €402.00
In stock
SKU
JY-TZ186N4

SKU: JY-TZ186N4
Ship From: Chinese Warehouse
OS: Android 12
CPU: QCM6125 Octa Core 64bit ARM 4xA73@2.0GHz 4xA53@1.8GHz
Ram: LPDDR4X 8GB  Rom:128GB



Note: If you are not sure whether this head unit can fit your car, pls send your car model, years and dashboard picture to europe@joyingauto.com, we will help you confirm it.


Supported Micro SIM cards type:



GSM

GSM850  EGSM900  DCS1800  PCS1900

WCDMA BAND1  BAND2  BAND5  BAND8

SIM Cards Type

TD-SCDMA BAND34  BAND39
  TDD-LTE BAND34  BAND38  BAND39  BAND40  BAND41
FDD-LTE BAND1  BAND2  BAND3  BAND5  BAND7  BAND8  BAND20 BAND29A





Note:

1. Joying head units can't support like below: iPod, factory GPS antenna, factory Bluetooth antenna, factory Microphone. You can use our included GPS antenna and mic.

2. Please don't upgrade your unit with other firmware that isn’t provided by Joying. Otherwise, you may not upgrade your unit anymore and also will lose our 2-year warranty.

3. All the price shown on this website is in EUR.


Shipping
1. We ship the unit from China Warehouse via DHL for free to most countries. Some remote countries need to pay extra shipping fee 20 euro.
2. We will arrange the shipment within 24 hours(except the weekend and some special holidays) and send you the tracking number via email, please make sure your email address is correct. Usually, it needs 3-7 days to most countries, some remote countries need 5-12 days.
3. Some accessories and harness which only available in China, it is shipping from China via China post as default. Usually, it needs 12-28 days. If you want a faster way, we can ship you via EMS(5-12 days) or DHL(3-7 days, may have tax when you received), but you need to pay extra shipping fees 15 euro via Here. More details pls Check Here.


TAX:
Usually, there is no tax shipping from Germany to most EU countries. If some countries need tax that is depend on your country's customs policy. Our Joying does not undertake the tax. More details pls check Here.


Payment
Our website only accepts PayPal for payment, the More detailed operation you can check Here.


Privacy Policy:
Joying respects your privacy and takes your online safety seriously. For your full understanding, we do NOT share or in any way distribute any personal, or contact information you may provide.


Warranty:
We offered 2 Years Warranty, 7 days return, and refund. 30 days return with the defective products. More details pls check Here.


More Information
Operating System Android 12
CPU Processor QCM6125 Octa Core 64bit ARM 4xA73@2.0GHz 4xA53@1.8GHz
RAM&ROM 8GB+128GB
Working Voltage 10V-14V
Working Temperature -20℃-70℃
Boot Up Time 2s
Password for Setting 8888
OSD Language Support 50+ kinds of languages, including English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Hebrew/Polish, etc.
Built-in 4G Module Yes
Touch screen type Capacitive touch screen

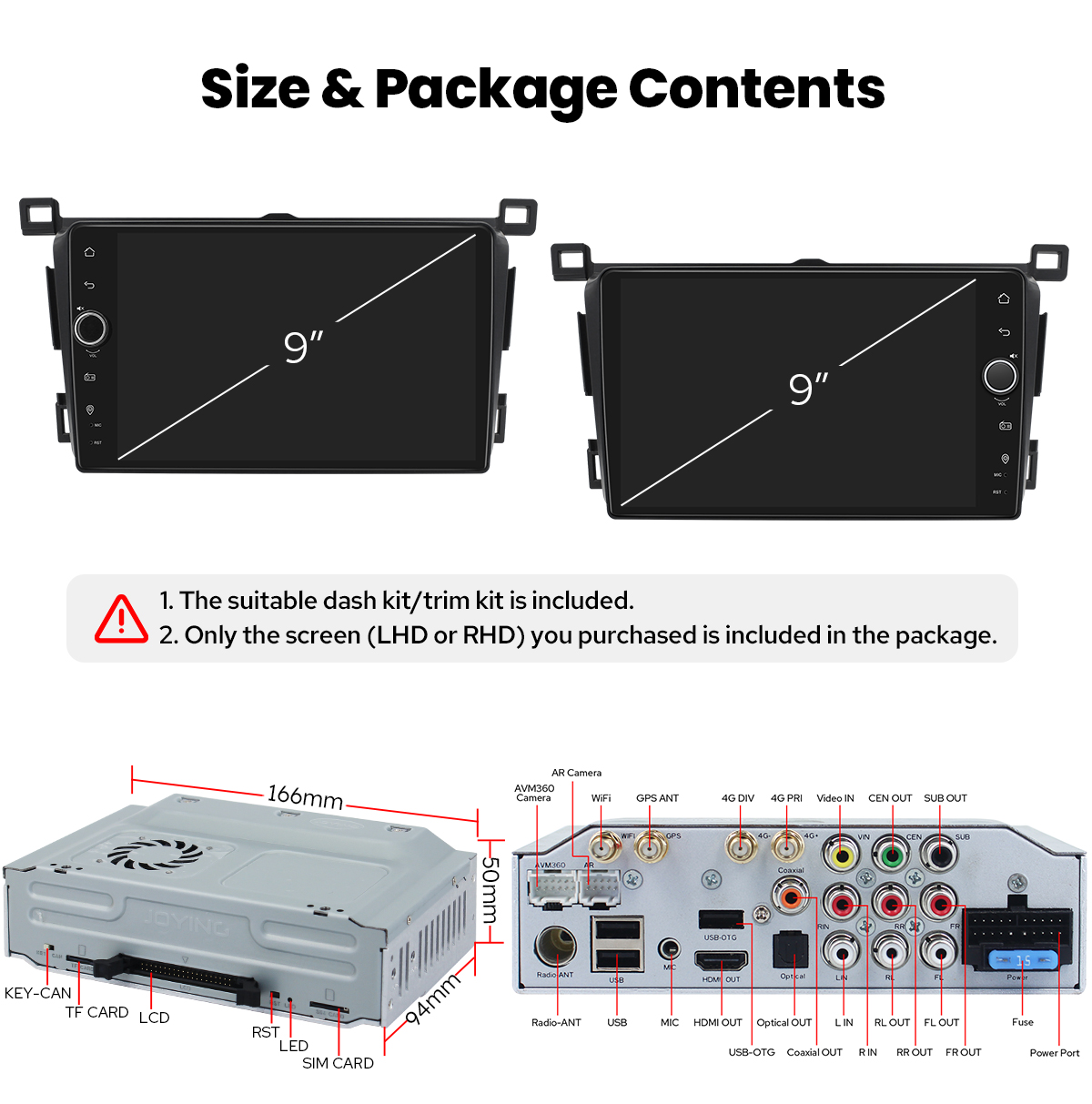

Screen/Panel Size & Screen resolution 9 Inch, 229*131*219mm, 1280*800
Brightness Adjustment Support
Bluetooth Bluetooth 5.1, Support hands-free calls, phone book, and Bluetooth music
Bluetooth Name/Password JY-Android & 0000
Amplifier IC TDA7851
Radio Chip SI47925
FM/AM Support
Radio Zone Setting China, Europe, America, Latin America, Russia 1, Russia 2, Brazil 1, Brazil 2, Middel East, Japan, Australia, Asia
Button Color Support multiple choice for button colors

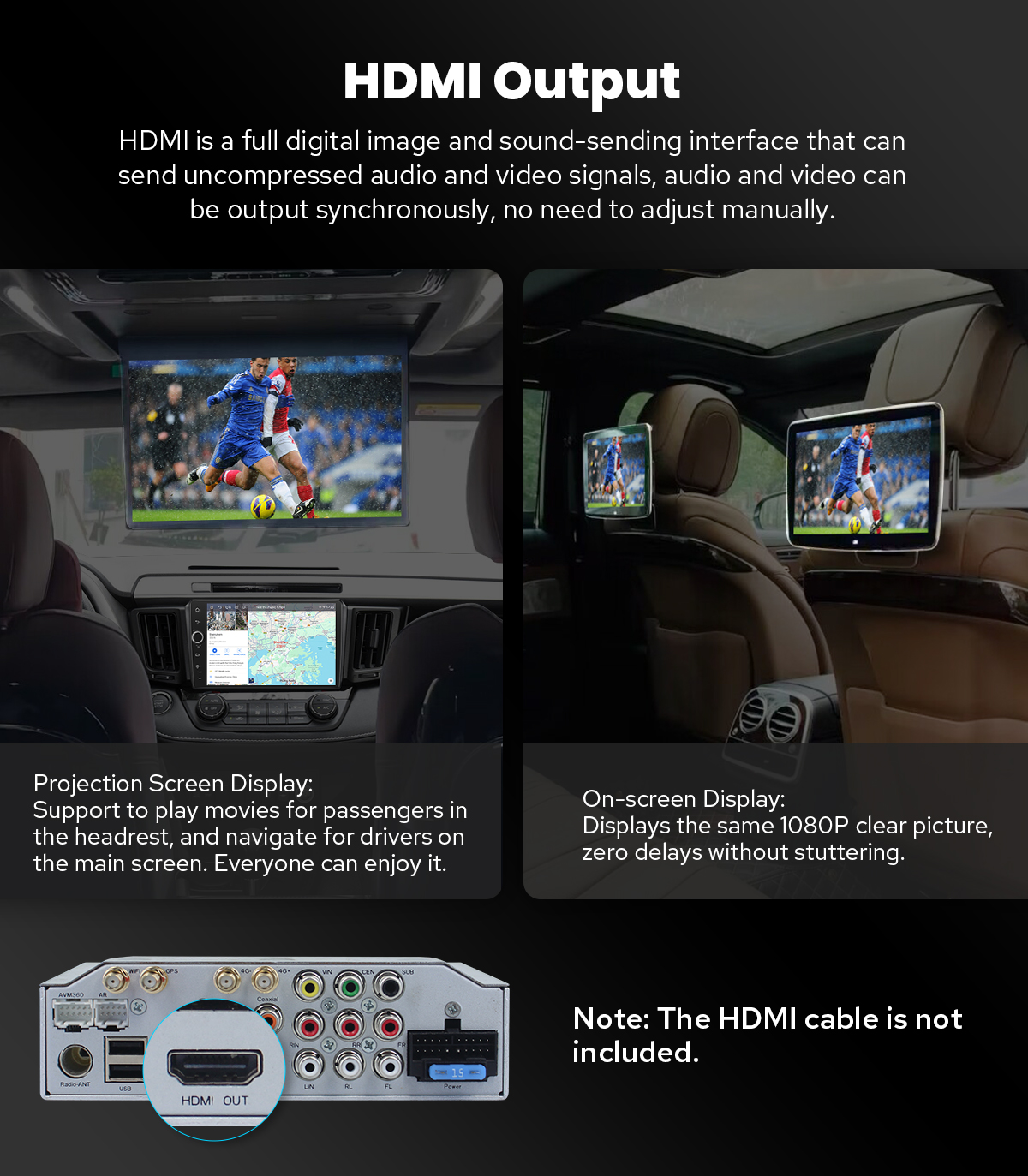

HDMI Output Support
Video Out Support
Audio Out Support
Optical Output Support
Subwoofer Output Support
Audio Power Output 4X50W
AUX Video/Audio Input Support
Boot up logo Support to customize boot up logo
Microphone Come with internal microphone and external 3.5mm Jack microphone

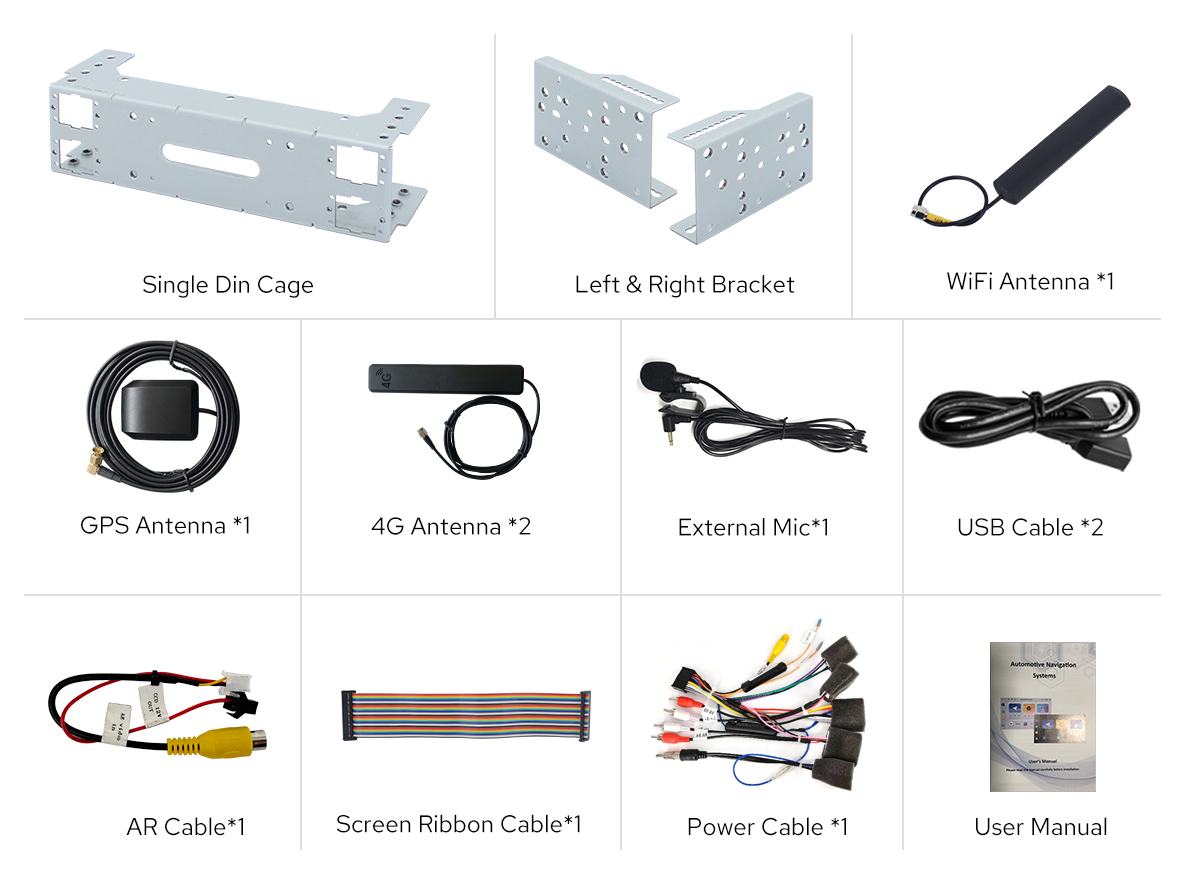

GPS Antenna Come with GPS antenna(Do not support the OEM Car GPS antenna)
GPS Navigation app Pre-installed Google Map app
SWC Support
APP Support most Android apps
HDD Support external hard drive with up to 500GB storage
Mirror Link Support
Carplay Support wired/wireless CarPlay
Android auto Support wired/wireless Android Auto
