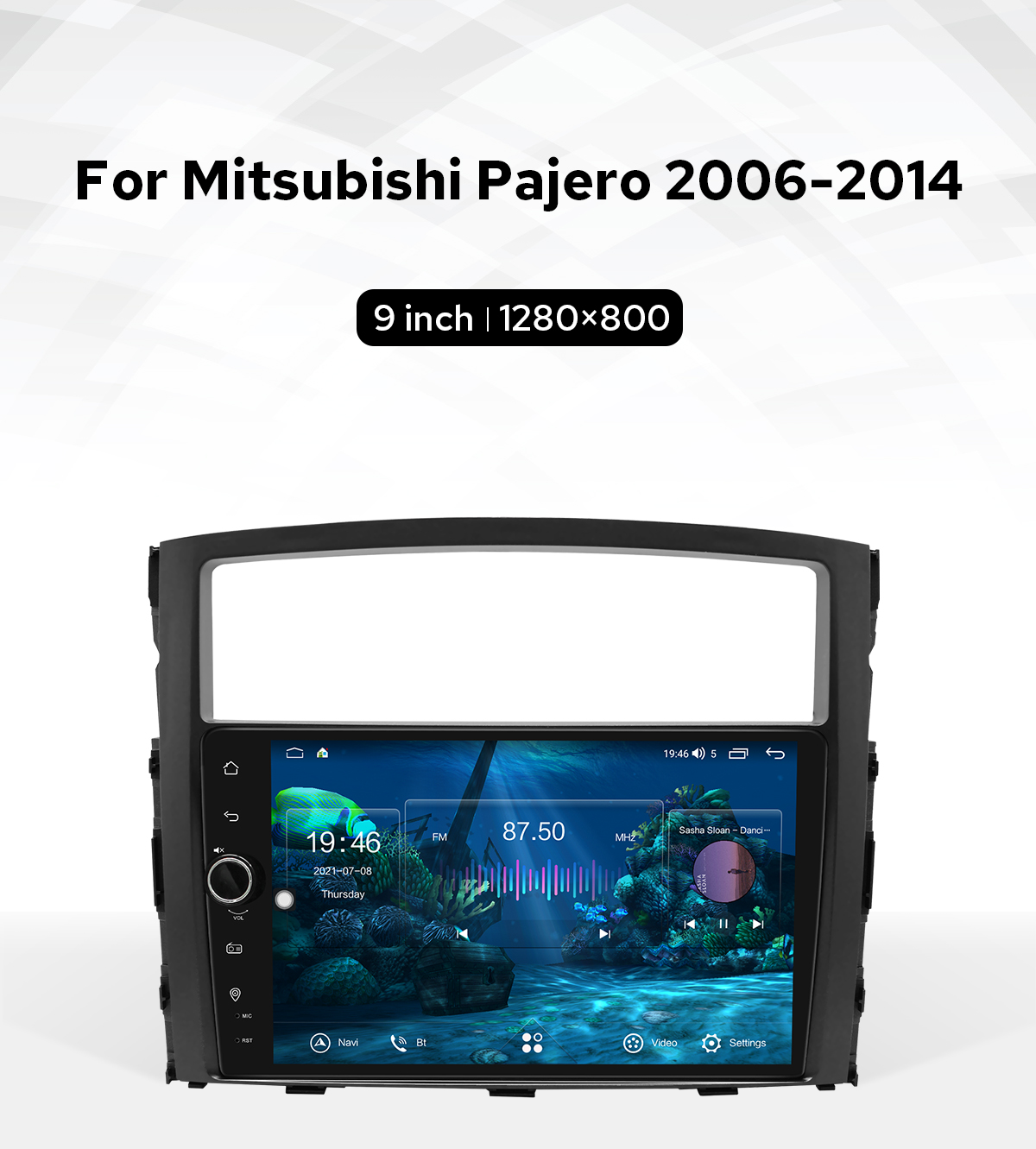

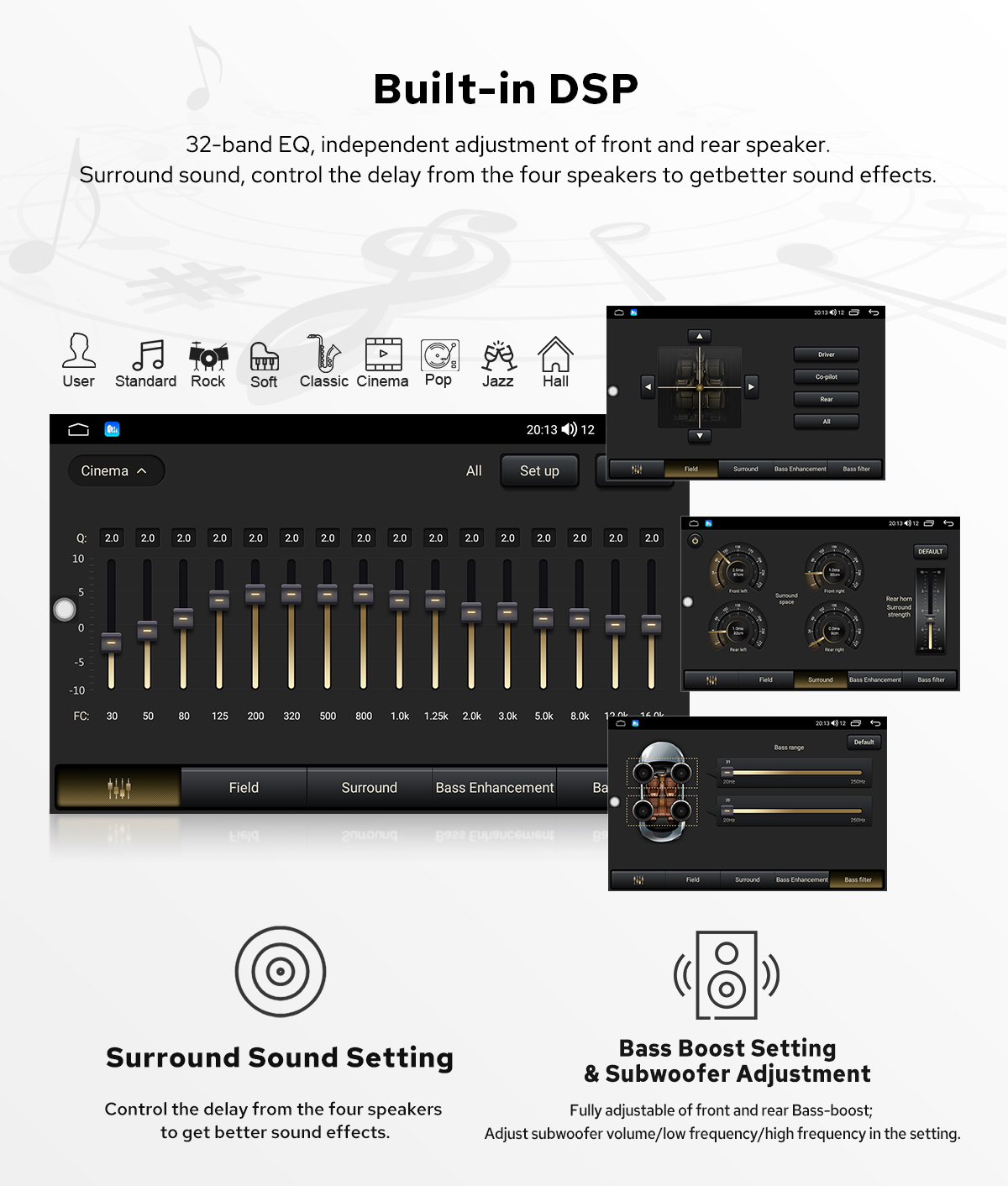

Joying 9 Inch 1280X800 Android 12 Head Unit Built-In DSP For Mitsubishi Pajero 2006-2014
SKU: JY-MSZ122N4
Ship From: Chinese Warehouse
OS: Android 12
CPU: QCM6125 Octa Core 64bit ARM 4xA73@2.0GHz 4xA53@1.8GHz
Ram: LPDDR4X 8GB Rom:128GB

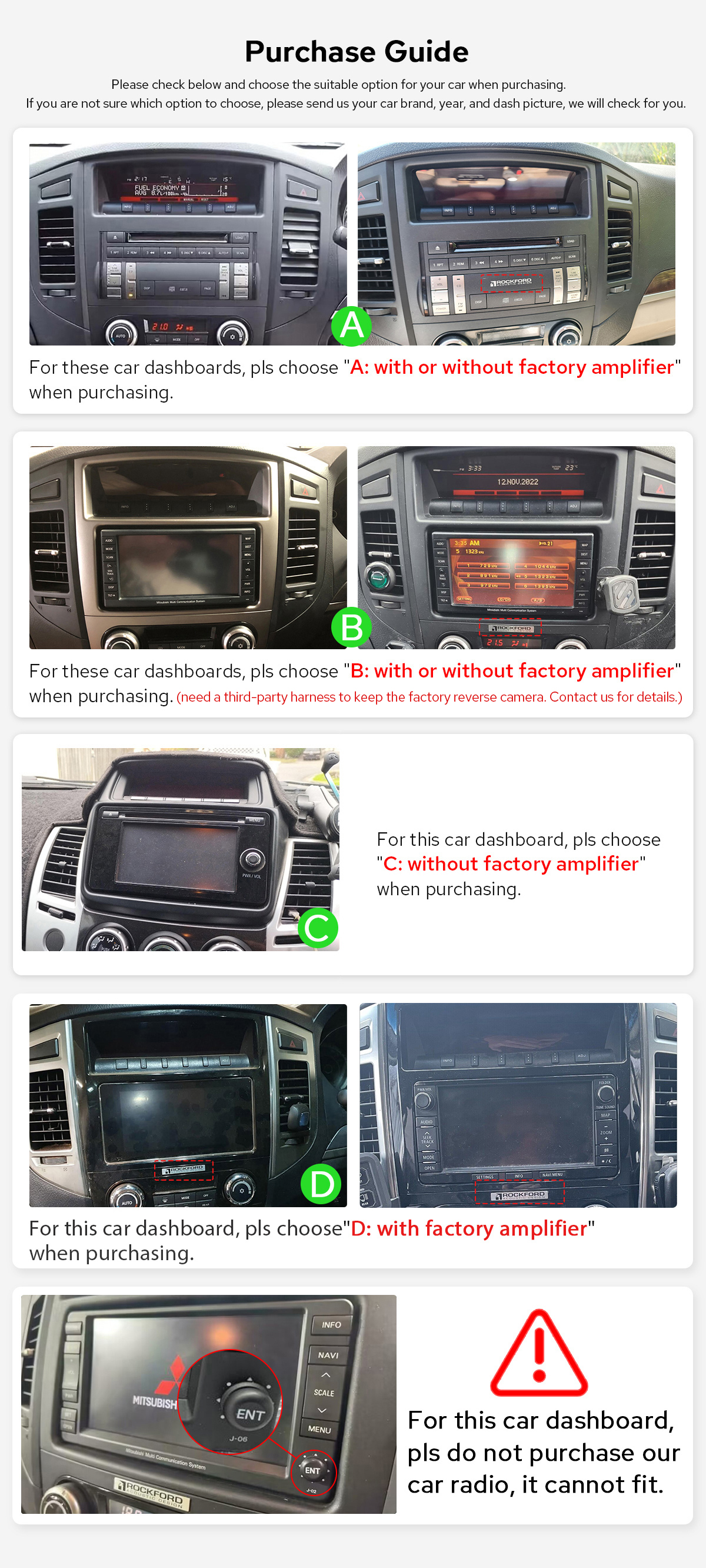

Note: If you are not sure whether this head unit can fit your car, pls send your car model, years and dashboard picture to europe@joyingauto.com, we will help you confirm it.
Supported Micro SIM cards type:
|
GSM |
GSM850 EGSM900 DCS1800 PCS1900 |
WCDMA | BAND1 BAND2 BAND5 BAND8 | |
SIM Cards Type |
TD-SCDMA | BAND34 BAND39 |
TDD-LTE | BAND34 BAND38 BAND39 BAND40 BAND41 | |
FDD-LTE | BAND1 BAND2 BAND3 BAND5 BAND7 BAND8 BAND20 BAND29A |
Note:
1. Joying head units can't support like below: iPod, factory GPS antenna, factory Bluetooth antenna, factory Microphone. You can use our included GPS antenna and mic.
2. Please don't upgrade your unit with other firmware that isn’t provided by Joying. Otherwise, you may not upgrade your unit anymore and also will lose our 2-year warranty.
3. All the price shown on this website is in EUR.
Shipping:
1. We ship the unit from China via DHL for free to most countries. Some remote countries need to pay extra shipping fee 20 euro.
2. We will arrange the shipment within 24 hours(except the weekend and some special holidays) and send you the tracking number via email, please make sure your email address is correct. Usually, it needs 3-7 days to most countries, some remote countries need 5-12 days.
3. Some accessories and harness which only available in China, it is shipping from China via China post as default. Usually, it needs 12-28 days. If you want a faster way, we can ship you via EMS(5-12 days) or DHL(3-7 days, may have tax when you received), but you need to pay extra shipping fees 15 euro via Here. More details pls Check Here.
TAX:
Usually, there is no tax shipping from Germany to most EU countries. If some countries need tax that is depend on your country's customs policy. Our Joying does not undertake the tax. More details pls check Here.
Payment:
Our website only accepts PayPal for payment, the More detailed operation you can check Here.
Privacy Policy:
Joying respects your privacy and takes your online safety seriously. For your full understanding, we do NOT share or in any way distribute any personal, or contact information you may provide.
Warranty:
We offered 2 Years Warranty, 7 days return, and refund. 30 days return with the defective products. More details pls check Here
Operating System | Android 12 |
---|---|
CPU Processor | QCM6125 Octa Core 64bit ARM 4xA73@2.0GHz 4xA53@1.8GHz |
RAM&ROM | 8GB+128GB |
Working Voltage | 10V-14V |
Working Temperature | -20℃-70℃ |
Boot Up Time | 2s |
Password for Setting | 8888 |
OSD Language | Support 50+ kinds of languages, including English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Hebrew/Polish, etc. |

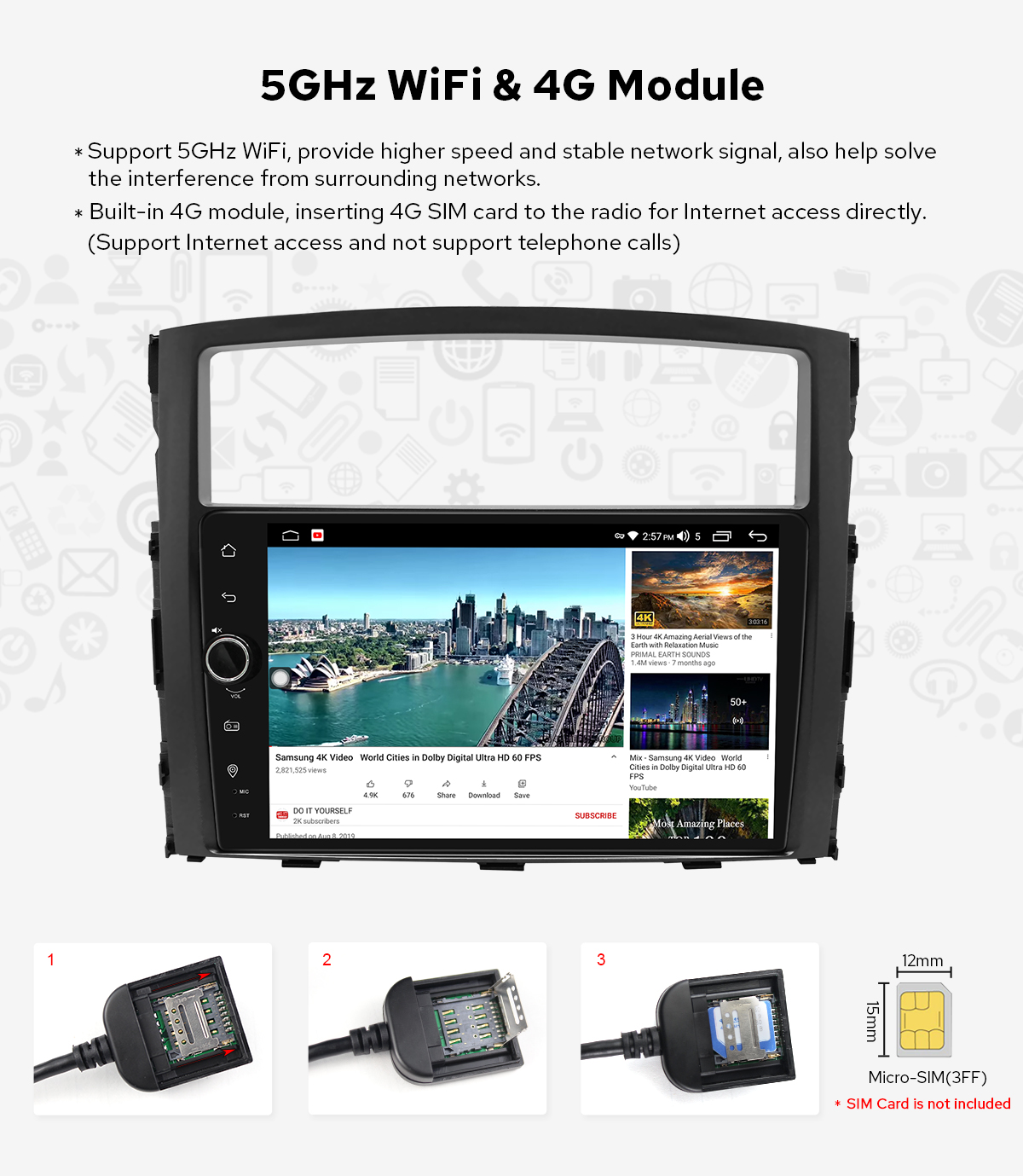

Built-in 4G Module | Yes |
Touch screen type | Capacitive touch screen |

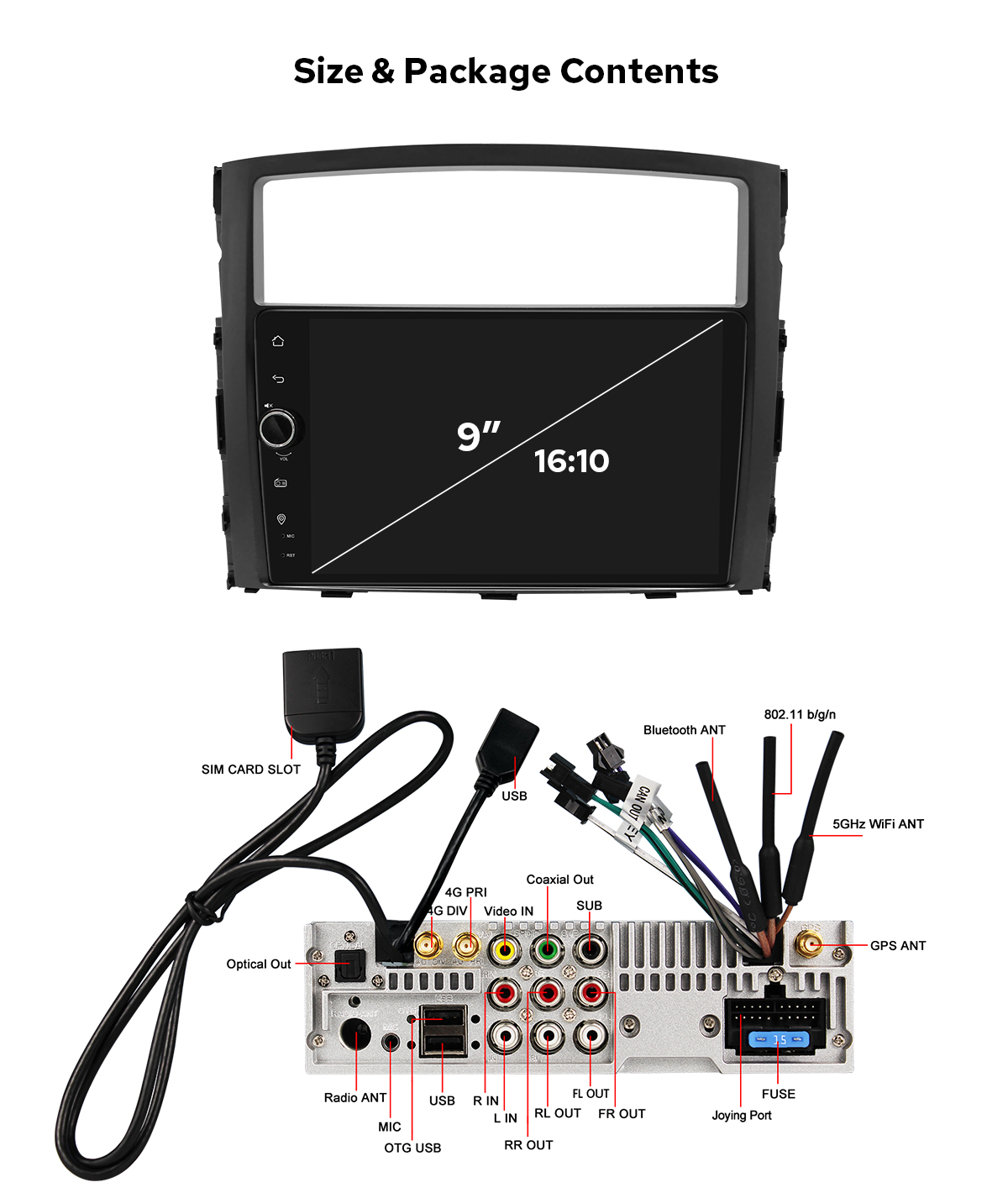

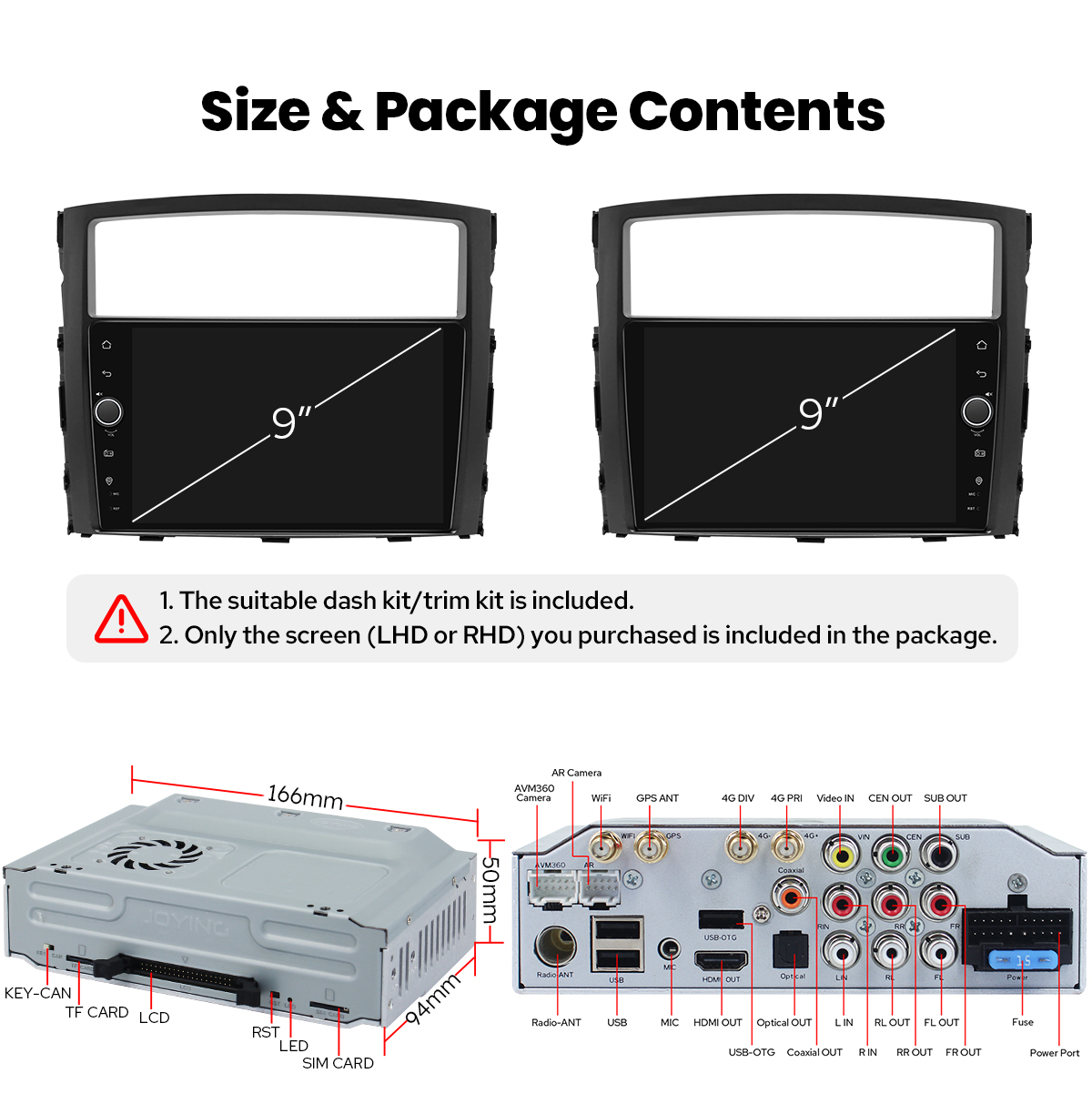

Screen/Panel Size & Screen resolution | 9 Inch, 229*131*219mm, 1280*800 |
Brightness Adjustment | Support |

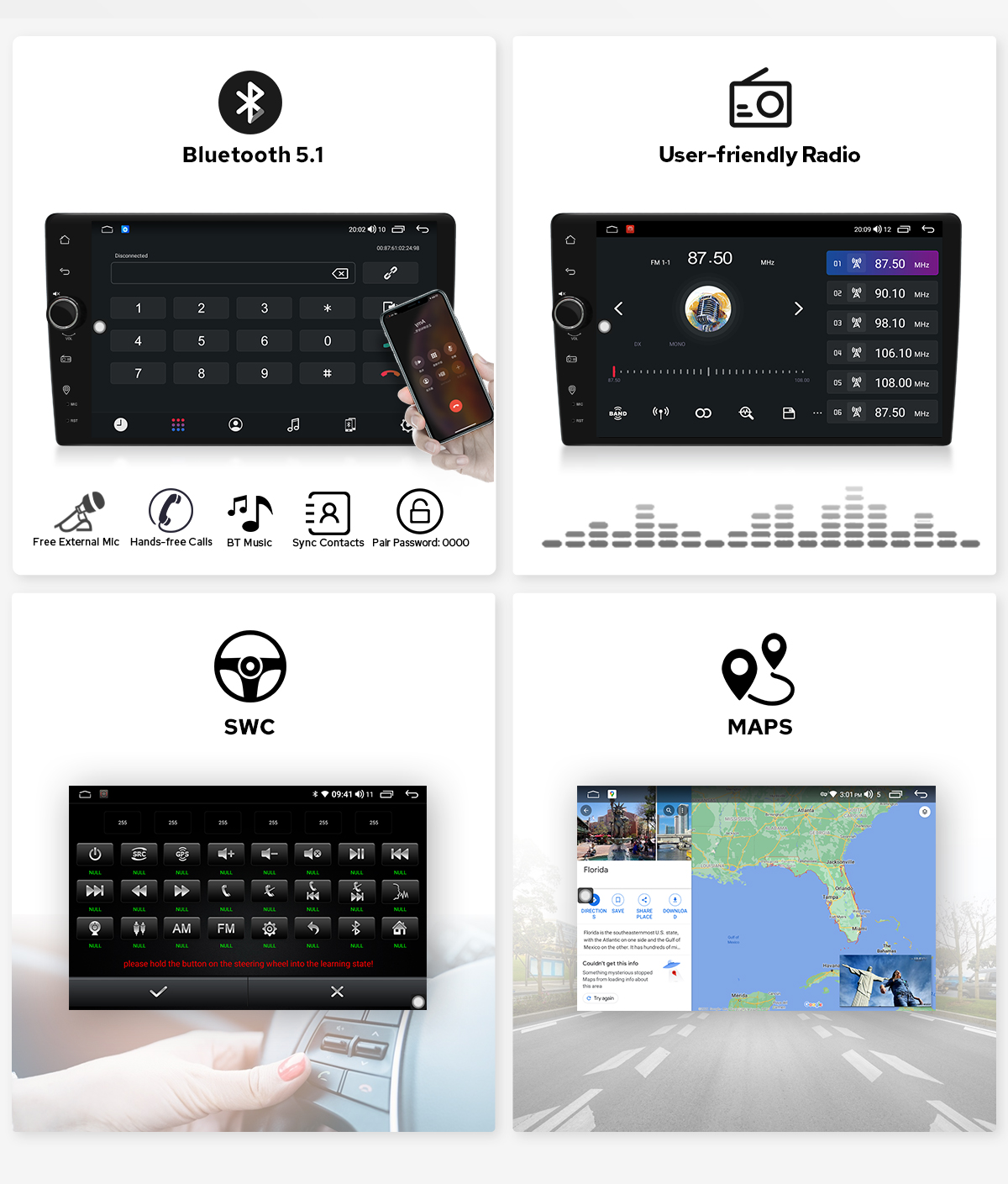

Bluetooth | Bluetooth 5.1, Support hands-free calls, phone book, and Bluetooth music |
Bluetooth Name/Password | JY-Android & 0000 |
Amplifier IC | TDA7851 |
Radio Chip | SI47925 |
FM/AM | Support |
Radio Zone Setting | China, Europe, America, Latin America, Russia 1, Russia 2, Brazil 1, Brazil 2, Middel East, Japan, Australia, Asia |
Button Color | Support multiple choice for button colors |
HDMI Output | Support |
Video Out | Support |
Audio Out | Support |
Optical Output | Support |
Subwoofer Output | Support |
Audio Power Output | 4X50W |
AUX Video/Audio Input | Support |
Boot up logo | Support to customize boot up logo |
Microphone | Come with internal microphone and external 3.5mm Jack microphone |
GPS Antenna | Come with GPS antenna(Do not support the OEM Car GPS antenna) |
GPS Navigation app | Pre-installed Google Map app |
SWC | Support |
APP | Support most Android apps |
HDD | Support external hard drive with up to 500GB storage |
Mirror Link | Support |

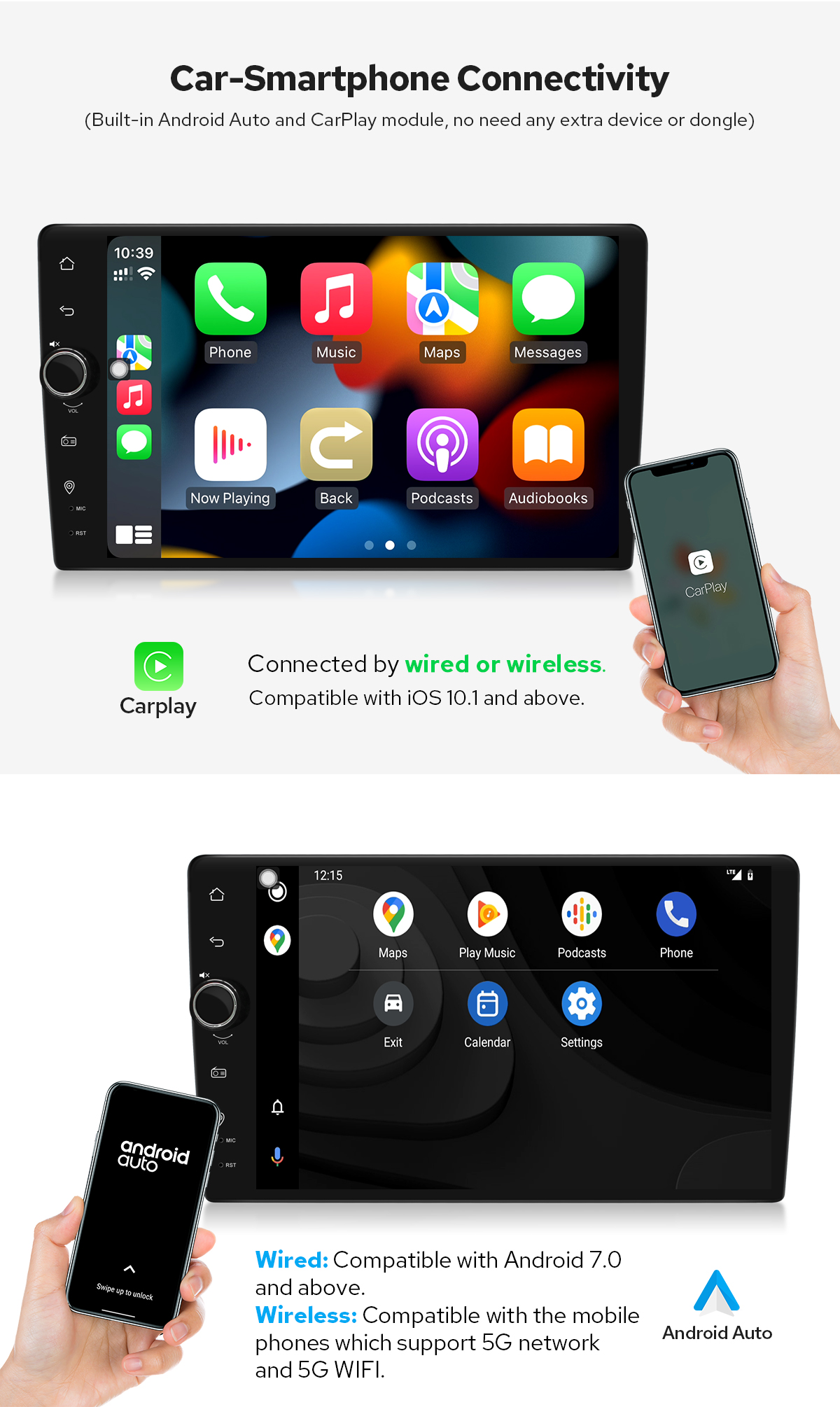

Carplay | Support wired/wireless CarPlay |
Android auto | Support wired/wireless Android Auto |
